High-Speed, High-Precision Rotary table
FANUC ROBODRILL DDRiB / DDR-TiB

High-Speed Rotary table capable of Turning
FANUC ROBODRILL DDR-HSiB

Product detail

DDRiB and DDR-TiB are the direct drive and non-backlash rotary tables which enable high-speed and high-precision machining.
By optimizing the casting design and clamping mechanism, rigidity up and cycle time reduction are achieved.

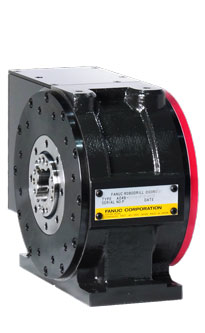

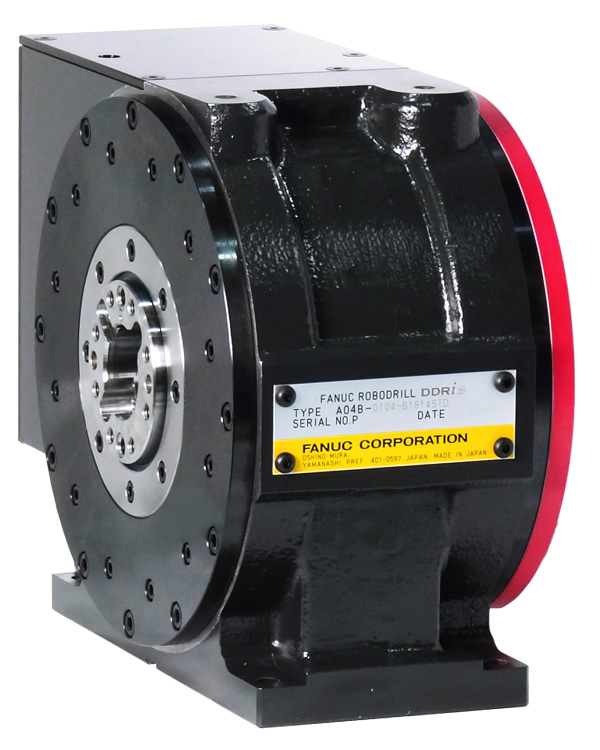

DDRiBDDRiB

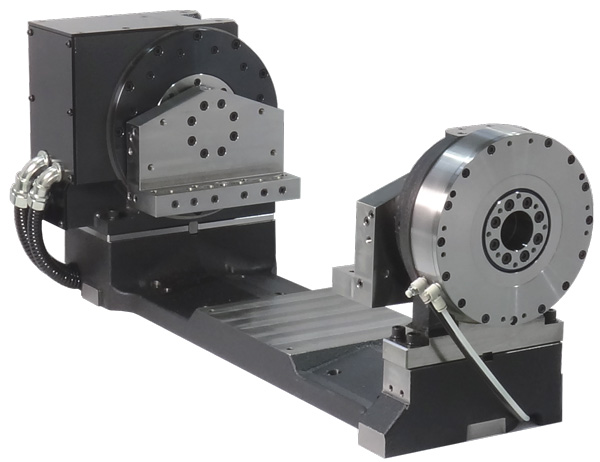

DDR-TiBDDR-TiB

Product large image
Product large image

DDR-HSiB is capable of high-speed and high-precision turning by using turning functions of CNC.
Two different installation types are selectable by user’s application.

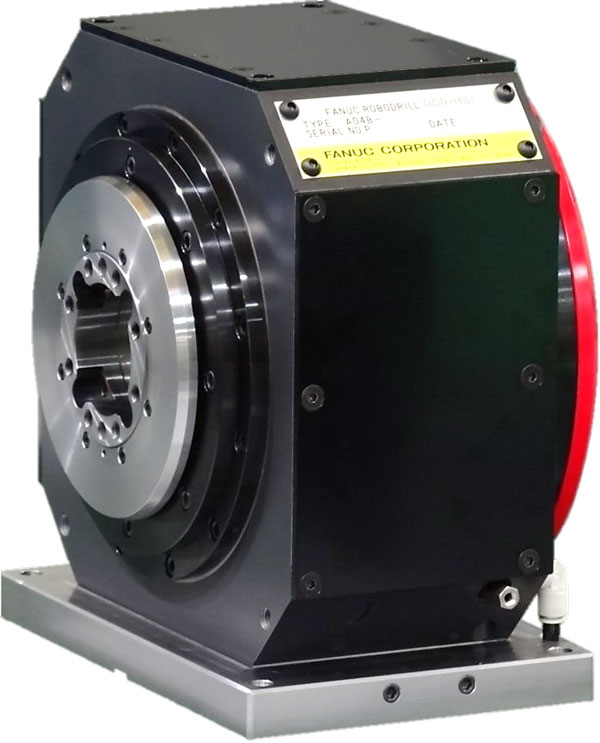

DDRiBDDR-HSiB
(Horizontal axis installation)

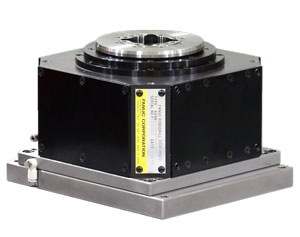

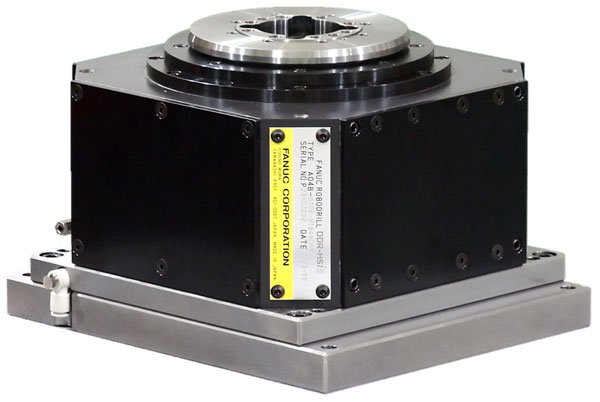

DDR-TiBDDR-HSiB
(C-axis installation)

Product large image
Product large image

DDRiB specifications

DDRiB specifications
Maximum torque 275 N･m
Maximum speed 300 min-1 *1
Index accuracy ±0.0028 deg.
(±10 sec.)
Max. loading capacity 100kg
*1 When loading mass is under 25kg and workpiece inertia is under 0.25kg・m2.



DDR-TiB specifications

DDR-TiB specifications
Maximum torque 275 N･m
Maximum speed 200 min-1
Index accuracy ±0.0028 deg.
(±10 sec.)
Max. loading capacity 200kg*2
*2 For DDR-TSiB, Max. loading capacity is 50kg.



DDR-HSiB specifications

DDR-HSiB specifications
Maximum torque 100 N･m
Maximum speed 1,500 min-1
Index accuracy ±0.0028 deg.
(±10 sec.)
Max. loading capacity 40kg



DDR-TiB Video
